NAME:LZZB9-24/180B/4 Current transformer
Detailed introduction:

Overview

    This type of current transformer is a fully enclosed structure with epoxy resin casting insulation. It is suitable for current and electric energy measurement and relay protection in power lines and equipment with 50Hz and rated voltage of 10kV and below.



Technical parameters

The product meets the qualified standards: GB1208-2006 and IEC60044-1

Rated secondary current: 5A or 1A

Rated frequency: 50Hz

Ambient temperature: -5°C~ +40°



Rated current ratio (A)

Accuracy class

Rated output (VA)

Short-time thermal current (KA/S)

Dynamic steady current

(KA)

Rated insulation level

(kV)

20-150/5

0.2/0.5

0.2/10P10

0.5/10P15

10/10

10/15

10/10

150

375

24/65/125

200/5

31.5

80

300-500/5

45

100

600-800/5

0.2/0.5

0.2/10P10

0.5/10P15

10/15

10/20

15/15

63

130

1000-1250/5

80

130

1500-2000/5

80

160

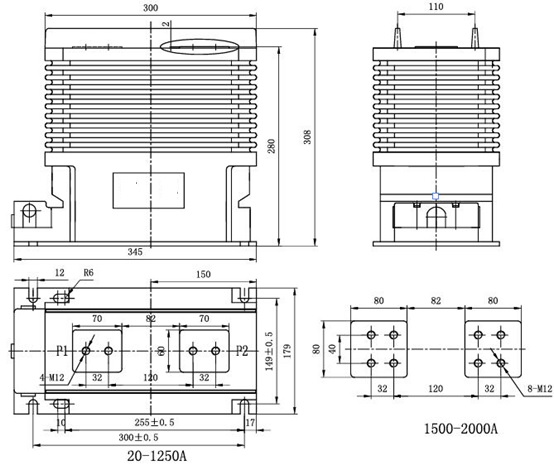

2D drawing and installation size
