NAME:LTK2-10 Splittable type current transformer
Detailed introduction:

The LDK series of split core-type current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in 10kV AC power systems. The current transformer has the following characteristics: small size, light weight, splittable and easy to install. It is widely used in compact full-insulation ring network switchgear, and is very suitable for RSU, FTU and other remote terminal equipment to form a sampling unit for the whole system data support. It is quick and easy to attach directly to the connected incoming and outgoing cable during installation. It has been widely used in compact full-insulation ring switchgear such as SafeRing/Plus, Uniswitch, RM6/SM6, SVS, GA/GE, FB, SS, etc. It is also used in combined substation and cable distribution box.


Specifications:

Rated frequency: 50Hz or 60Hz;

Rated secondary current: 5A or 1A;

Power frequency withstand voltage: 3kV/1min

Rated expansion current: 120%ln;

Executive standard: GB20840.2-2014;

Conditions:

Temperature: -35°C~+55°C

Daily average humidity: ≤40%

Altitude: ≤3000m

Atmosphere: without heavy pollution

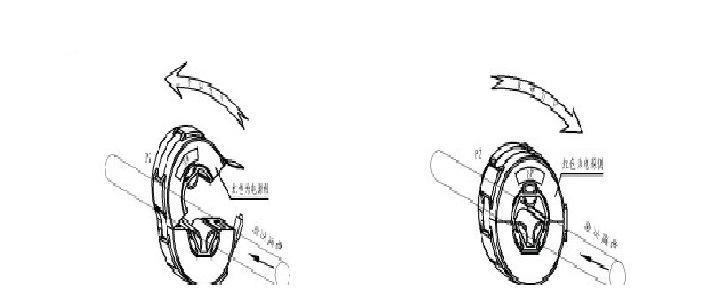

Installation diagram


Specification table:

Model

LTK2-10

Use

current mesurment

current protection

Current ratio

I1 / I2

Accuracy level and rated loadVA

0.5

1

3

10P15

10P10

10P5

200/1

1.25







1

2

300/1

2.5







1

2.5

400/1

5







1

3.75

500/1

5







2.5

5

600/1

5







2.5

5

200/5

2.5









2.5

300/5

2.5









2.5

400/5

5







2.5

3.75

500/5

5







2.5

5

600/5

5







2.5

5

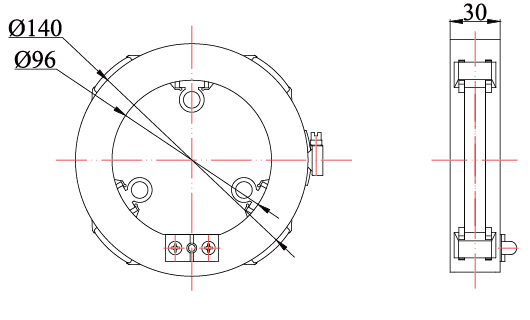

Dimensions:

.

LDK series splittable type current transformer:


Model

Current ratio1V/5V

Rated load range

Dimensions (mm)

LDK1-10

300800A

≤10VA

φ105×φ50×35

LDK2-10

401200A

≤30VA

φ110×φ50×52

LDK3-10

301200A

≤60VA

φ110×φ50×100

LDK4-35

50600A

≤15VA

φ135×φ70×80

LDK5-35

501000A

≤10VA

φ150×φ100×75

LDK6-10

301200A

≤60VA

φ110×φ50×75

LDK7-10

300600A

≤10VA

φ115×φ70×40

LDKS1-10

300600A

≤10VA

φ70×φ30×40

LDKS2-10

300600A

≤10VA

φ特定×φ40×55

LTK1-10

200800A

≤5VA

φ130×80φ×45

LTK2-10

200600A

≤5VA

φ140×φ96×30
