NAME:WIC1-W2 (1)special current transformer
Detailed introduction:

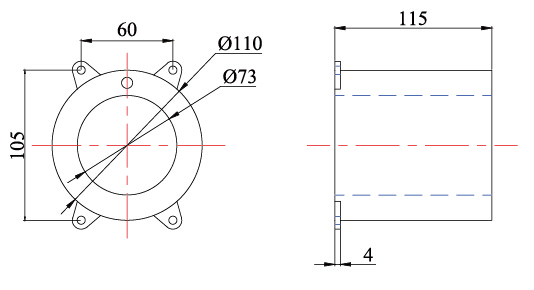

Dimensions:



Technical Parameters



Products meet the standard GB1208-2006 and IEC60044-1:2003 and customer special requirements

 Rated voltage: 0.5KV (can be used for 10KV-24KV high voltage cable system)

 Rated frequency: 50Hz or 60Hz

 Ambient temperature -5°C~+40°C



Current transformers with different specifications and parameters can be customized according to user requirements

Model

WIC1-W2(1)

WIC1-W3(1)

WIC1-W4(1)

WIC1-W5(1)

WIC1-W6(1)

Rated primary current (A)

14.4-57.6

28.8-115.2

57.6-230.4

115.2-460.8

230.4-921.6

Rated secondary current (A)

0.075-0.3S1S2 Winding),0.288-1.152CD Winding

Accuracy level combination

10P80

5P80

LoadVA

0.1
